STACBOND® composite panel

First

Epoxy-based (chrome-free)

0,5 mm aluminium

3105 alloy

Adhesive

Core

Mineral / Mineral filler

Adhesive

0,5 mm aluminium

5005 alloy

First

PVDF 70/30 paint

Protective varnish

(In three-layer finishes or on request)

Protective film

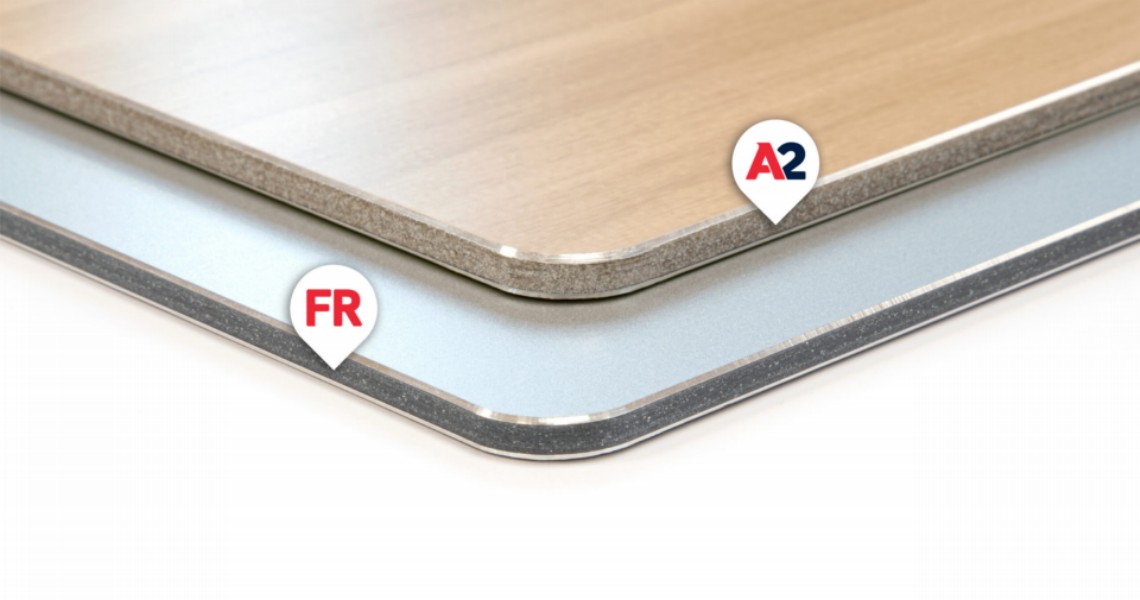

The STACBOND® composite panel is a composite material of two aluminum sheets and an inner mineral filler core. It has excellent mechanical properties, providing flexural rigidity with reduced weight, surface flatness, durability and ease of maintenance. It is specially designed for both newly-built ventilated facades and for their renovation or rehabilitation. It provides solutions adaptable to all fields of architecture. Its manufacturing standard is made up of an outer sheet of aluminum alloy 5005 and an inner one of 3105. There are two different cores available depending on their mineral load being able to be fireproof or fireproof , and being classified (in accordance with the UNE 13501-1: 2007 standard) as A2-s1, d0 (STACBOND® A2) and B-s1, d0 (STACBOND® FR). It has a wide range of colors, brightness, textures and natural finishes. In addition, it can be supplied in any color from the RAL / PANTONE / NCS charts. Consult us without obligation. The STACBOND® composite panel is available in multiple standard dimensions up to 2000mm wide. Other dimensions can be supplied on request.

Any RAL color possible

Excellent weight / surface ratio

Easily conformable

High UV resistance

Quick and easy assembly

High impact resistance

High dimensional stability

Fully recyclable

Architecture

Non-combustible composite panel with a mineral core that meets the highest fire classification standards.

See more

Architecture

Fire retardant composite panel with a inner core with mineral charge.

See more
STACBOND 2000 aluminum composite panel

The STACBOND® aluminum composite panel is available in the MAX 2000 (2 m wide) format, providing countless concept opportunities for architects and installers.

Benefits include fewer joints and cut-outs thanks to wider façade modulations, as well as tighter fabrication and installation costs by optimizing the configuration of machined parts within a single panel.

We are committed to protecting the environment, so much so that our FR and A2 core materials are made from recycled components.

This allows us to reduce the carbon footprint of our products, creating the most sustainable solutions with the best quality, taking care of the whole creative process from the raw materials to the end product.

STACBOND® has a wide range of colors, gloss, textures, and high quality natural finishes. Furthermore, it can be supplied in any RAL color.

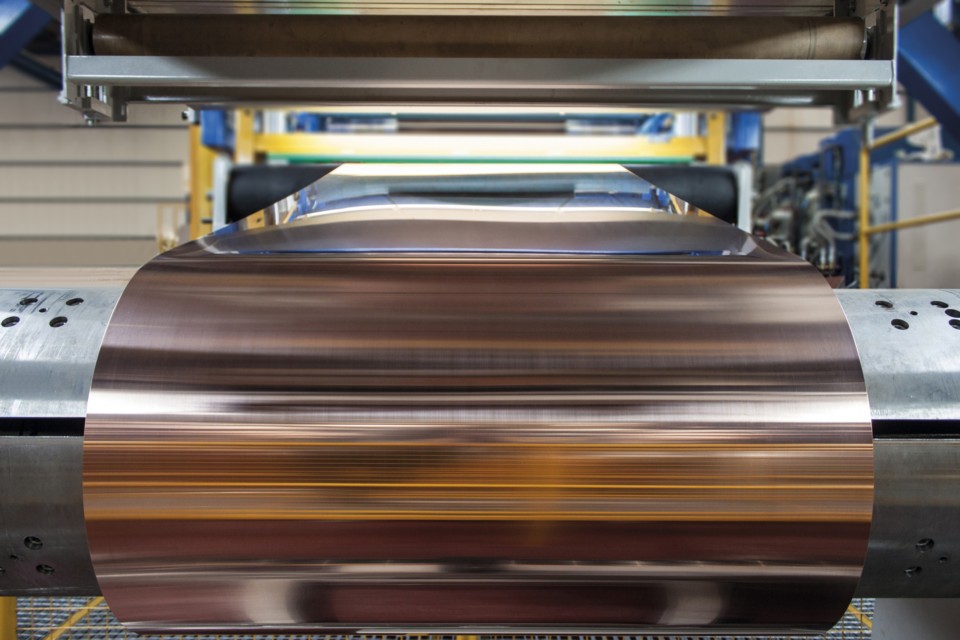

The STACBOND® composite panel can be manufactured with coil of other metals such as copper and zinc, thus offering a wide range of finishes that extend the limits of your imagination.

Consult with STACBOND® about the characteristics of these finishes with patination and natural oxidation processes.
